Overview

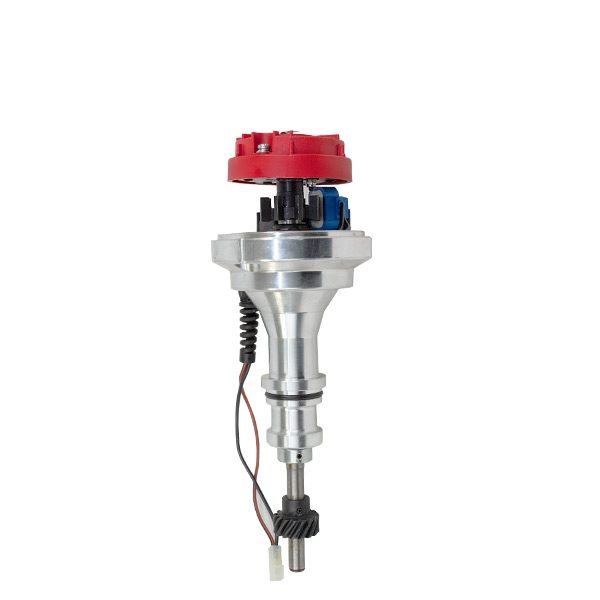

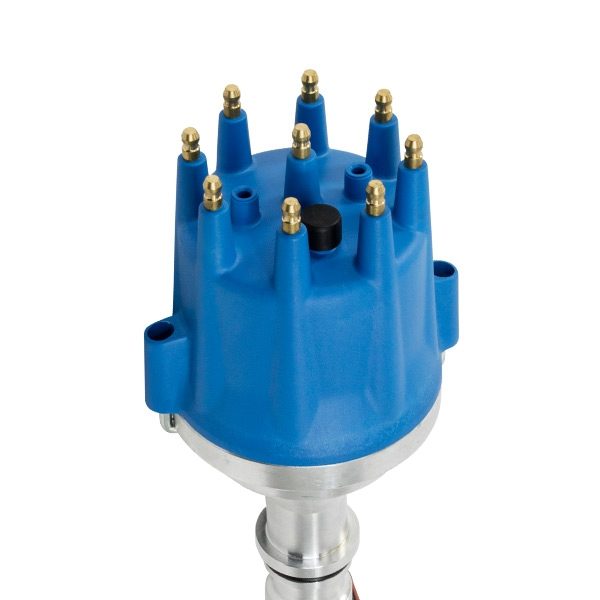

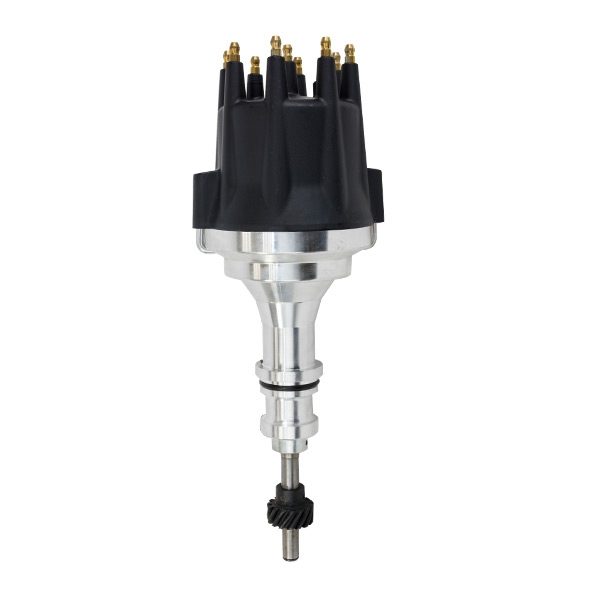

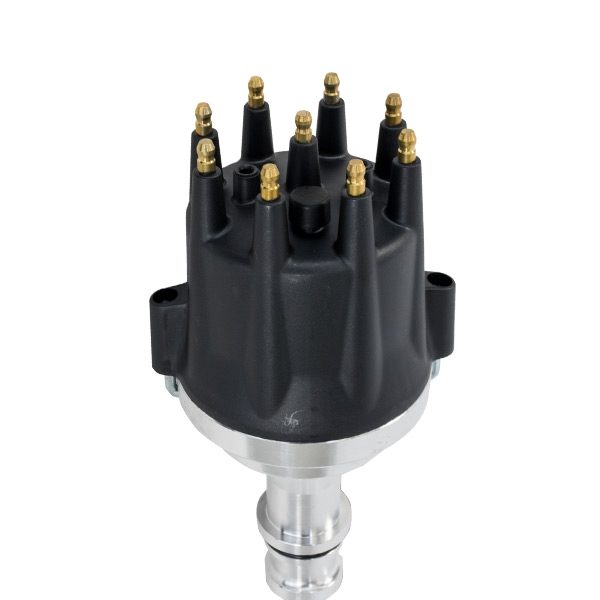

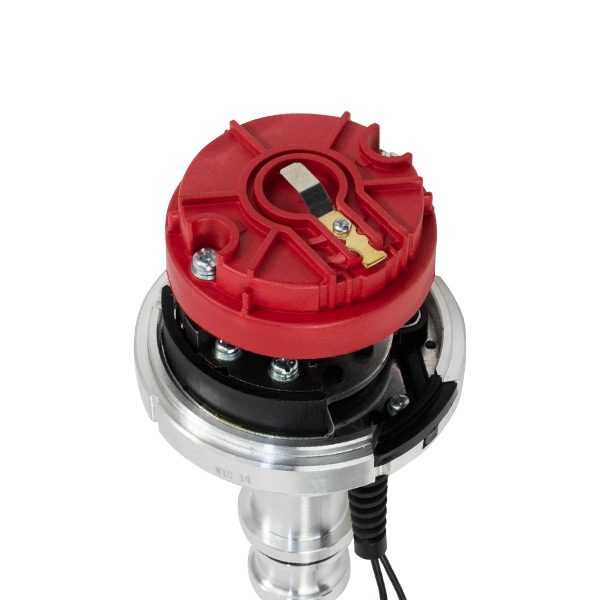

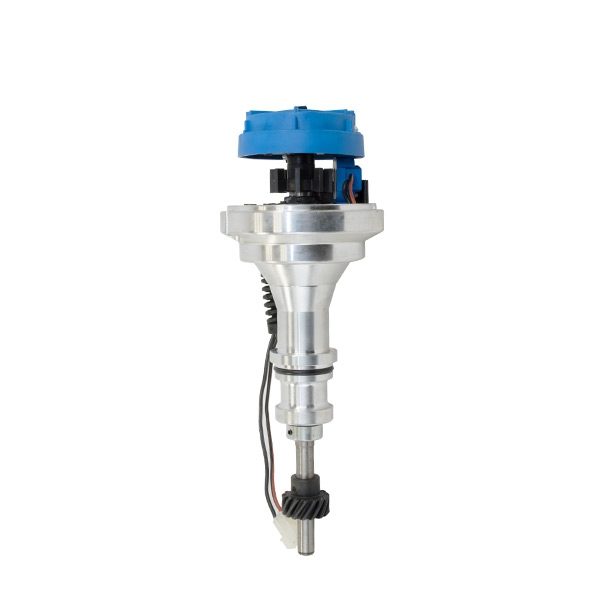

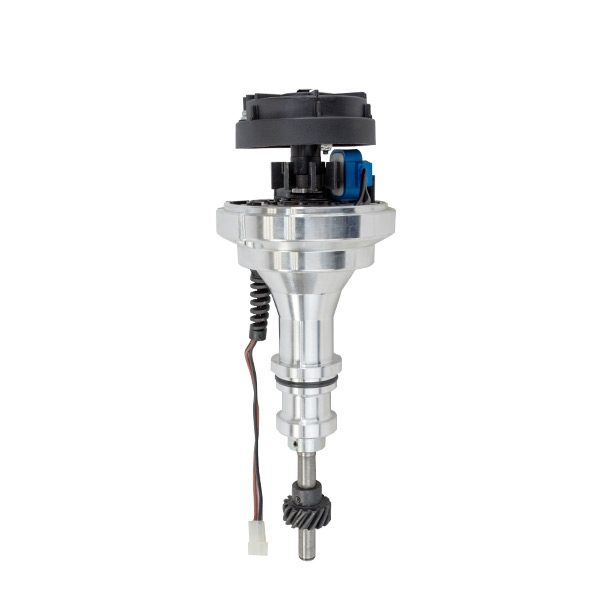

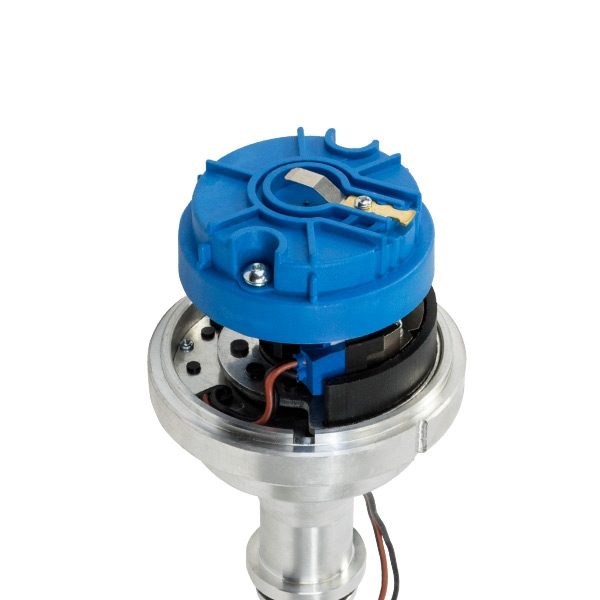

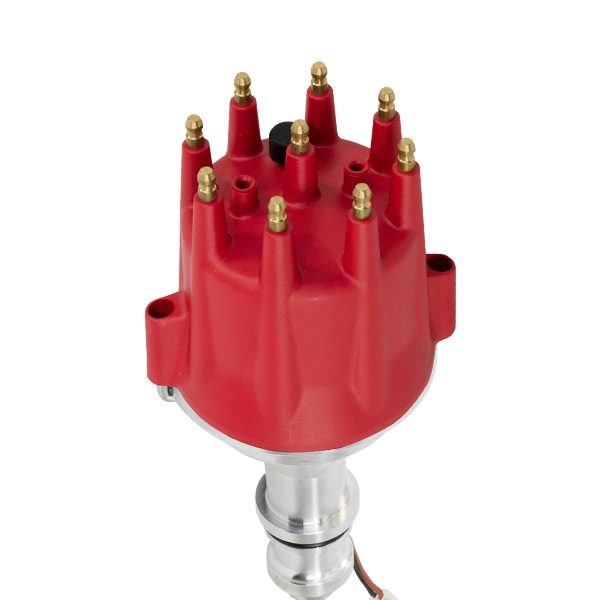

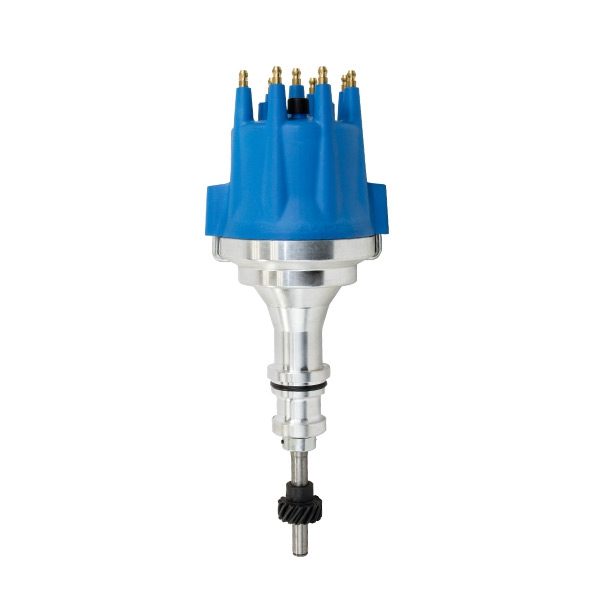

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer.

Requires the use of an ignition control system and external ignition coil.

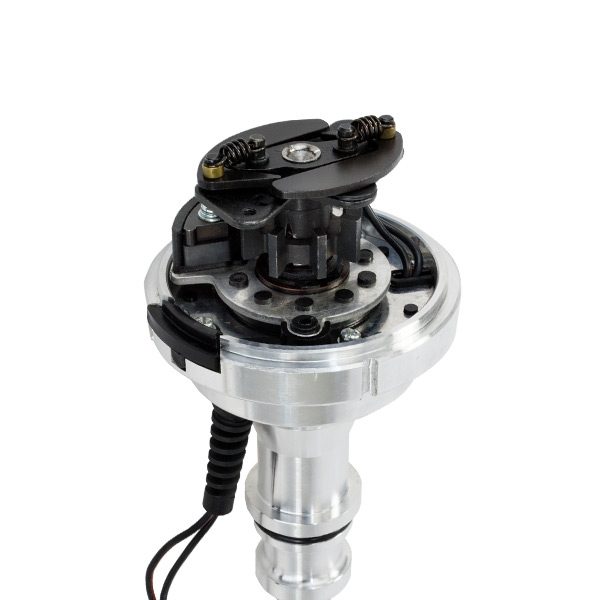

FULLY ADJUSTABLE MECHANICAL ADVANCE

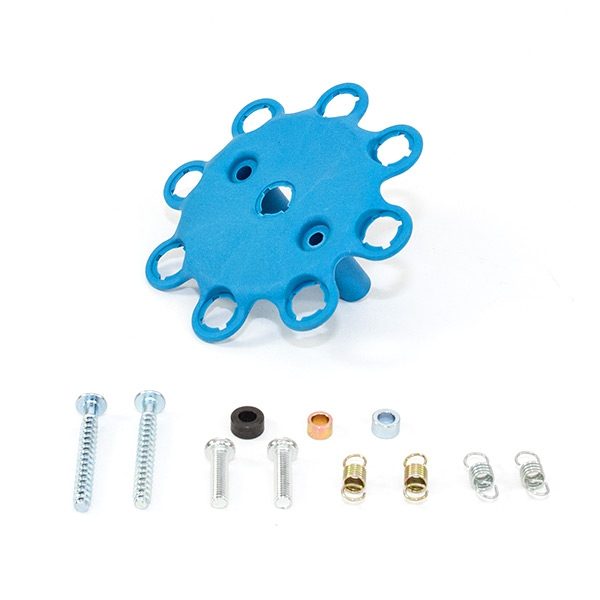

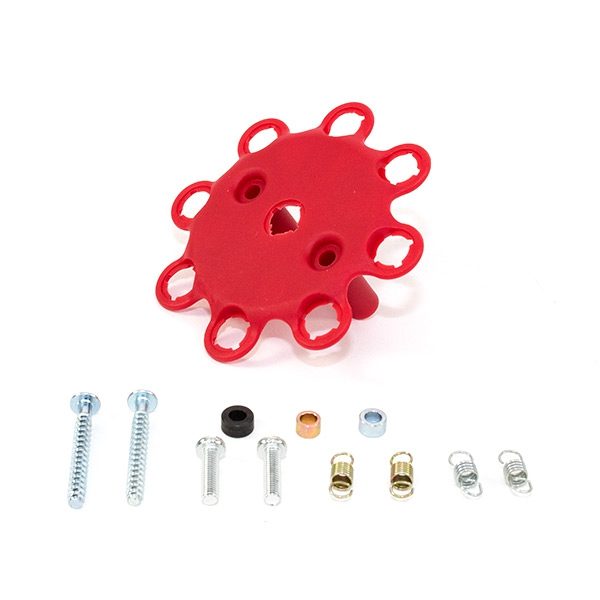

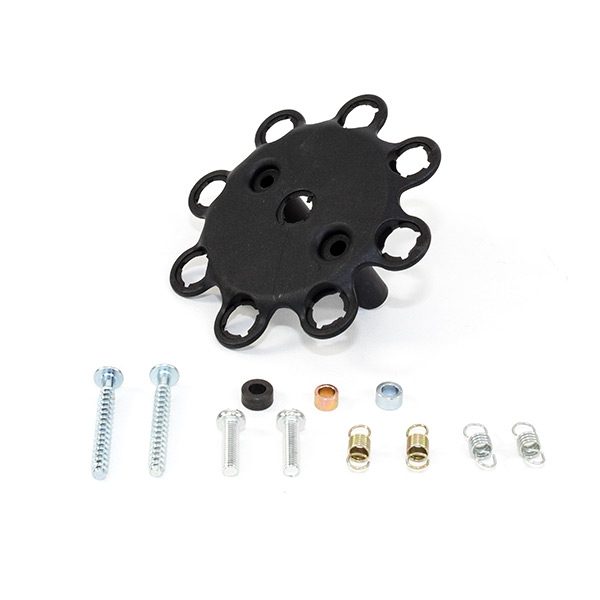

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

Specifications

FITMENT

FORD SMALL BLOCK WINDSOR V8

• 3.6 L / 221 in³
• 4.3 L / 260 in³
• 4.7 L / 289 in³
• 4.9 L / 302 in³ generally referred to as 5.0 L

FITMENT NOTES

• Will not fit 351W
• Due to its shorter gear, this distributor will not fit engines that came fuel injected from the factory
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material

ALERT

This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.
