GM LS V8 1.9 HP Mini Starter

GM LS V8 1.9 HP Mini Starter


SKU: JM7009 Category:


TSP’s Starter guarantees reliable starting power. After all, what’s the point of a high performance engine if it doesn’t start? This high torque starters features a compact, Nippondenso-style design for added clearance to fit most configurations. The motor is rated at 1.9 HP, which is guaranteed to get your street performance LS power plant started.

Powerful High-Torque Motor

The most important part of any starter is its motor. Our denso-style starters are powered by a high-torque, 1.9 HP motor. With its 4:1 gear reduction ratio, that means you’ll get 222 ft-lbs of torque. That’s some serious starting power.

High Quality Internal Components

With such a powerful motor, the rest of components must be durable. We construct our starters with the highest-quality internals. We overlooked no detail in the design process to ensure you have not only the power you need, but the reliability to deliver that power every time you need it.


Starter Style Mini
Starter Type Nippondenso
Adjustable Mounting Block Yes
Starter Rotation Standard
Maximum Compression Ratio 12.0:1
Gear Reduction Ratio 4.0:1
Horsepower 1.9
Starter Housing Material Cast Aluminum
Mounting Block Material Billet Aluminum
Included Test Results



  • 4.8 L / 294 in3
  • 5.3 L / 325 in3
  • 5.7 L / 346 in3 commonly referred to as 350 in3
  • 6.0 L / 364 in3


  • Fits 168-tooth flywheels


Part Number


Black JM7009BK
Chrome JM7009C (Coming Soon)

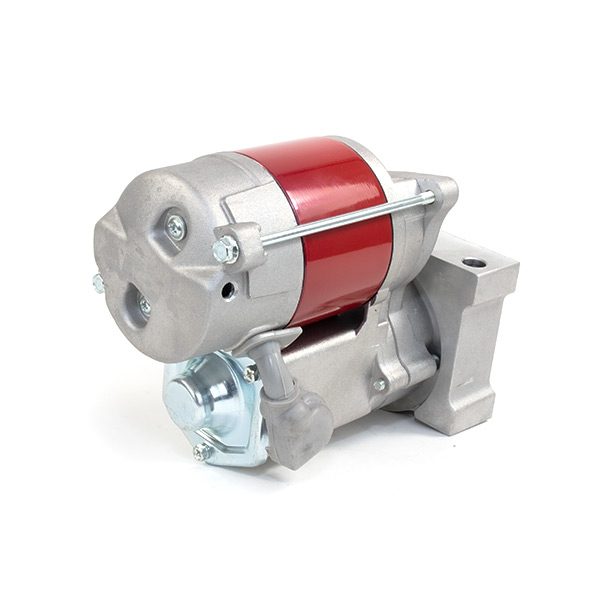

Red JM7009R
