Overview

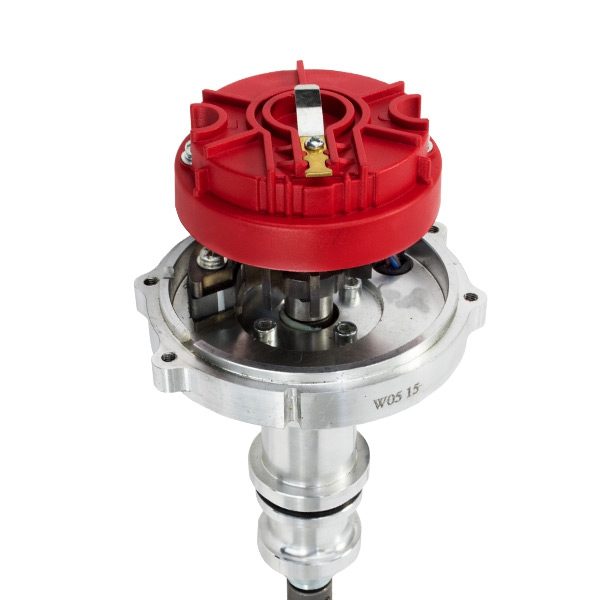

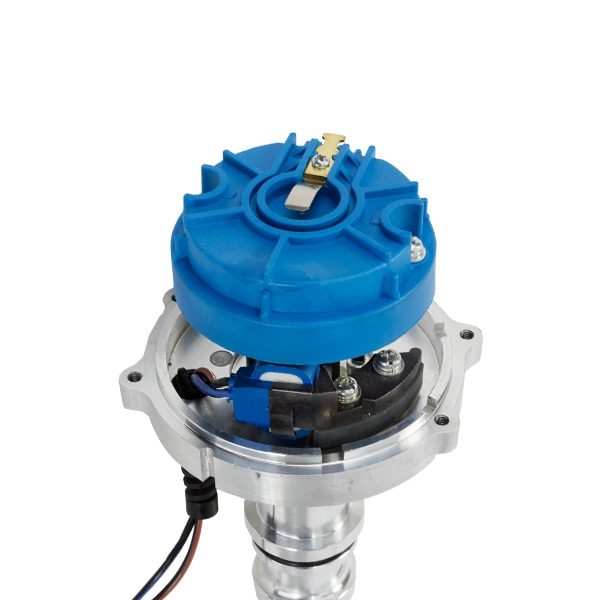

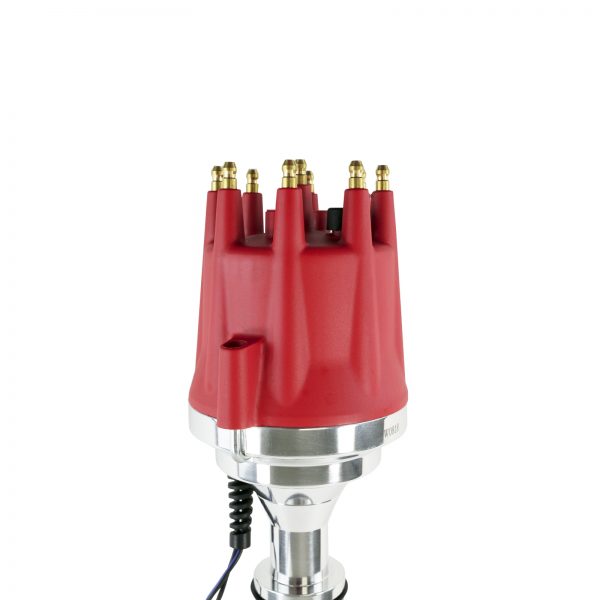

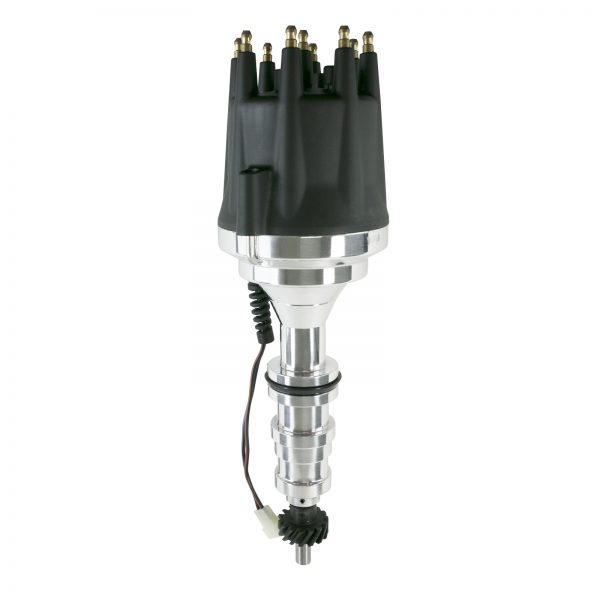

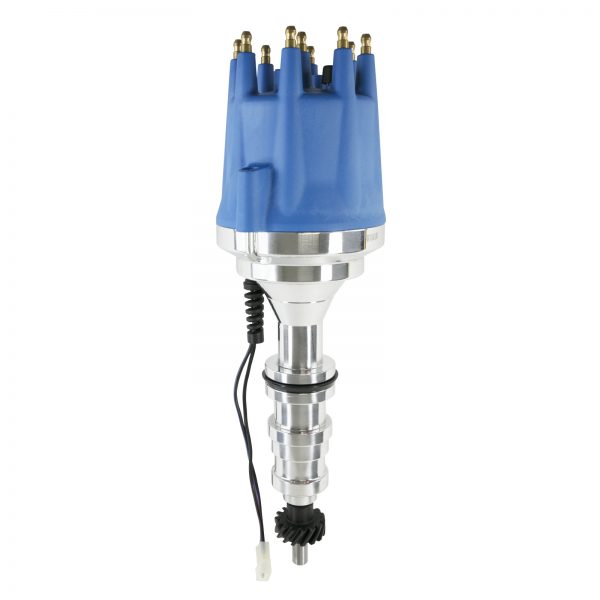

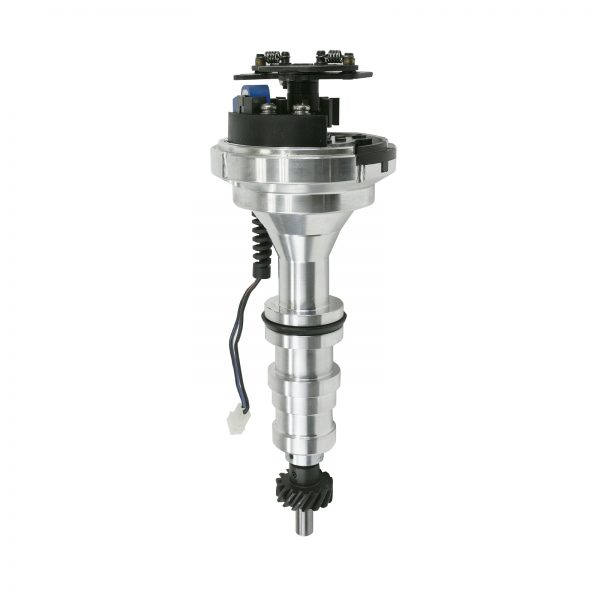

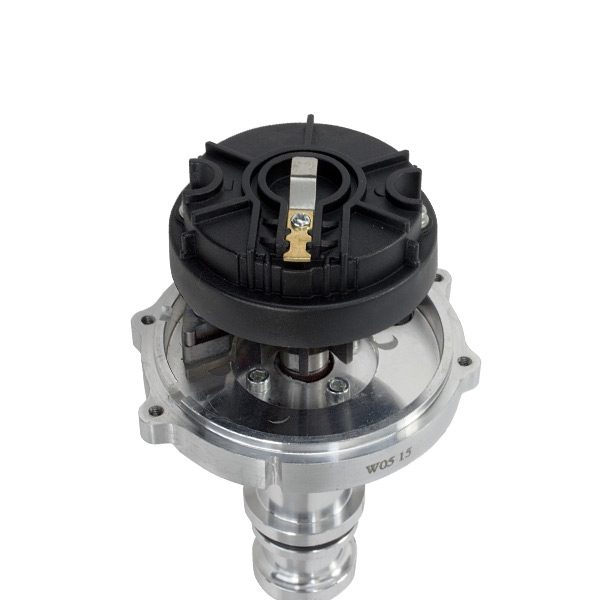

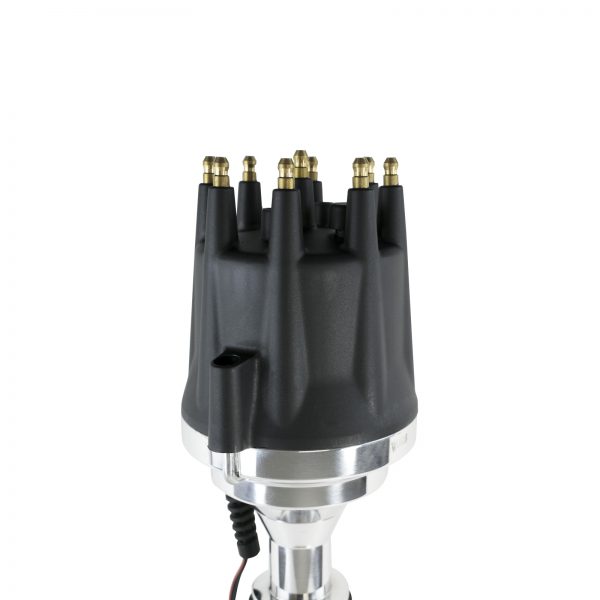

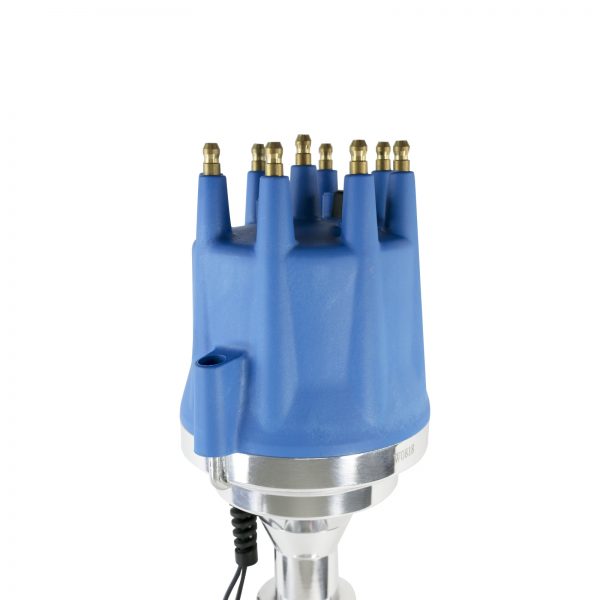

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer.

Requires the use of an ignition control system and external ignition coil.

FULLY ADJUSTABLE MECHANICAL ADVANCE

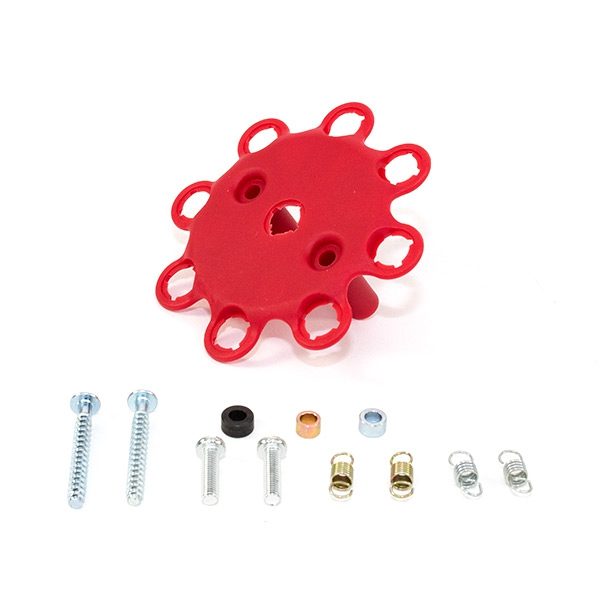

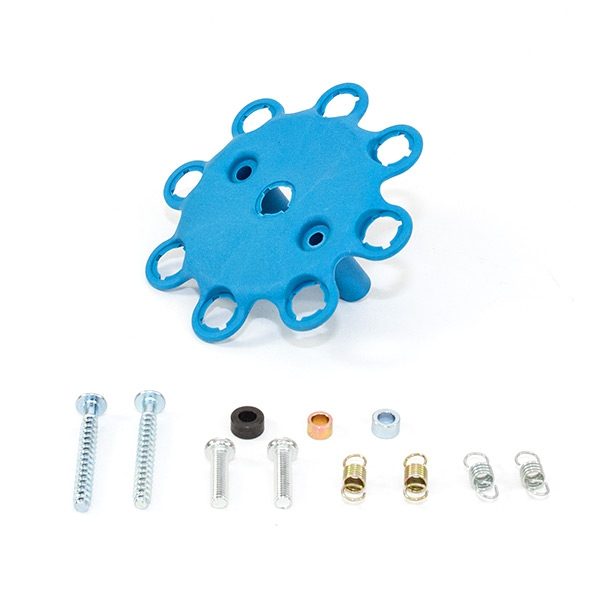

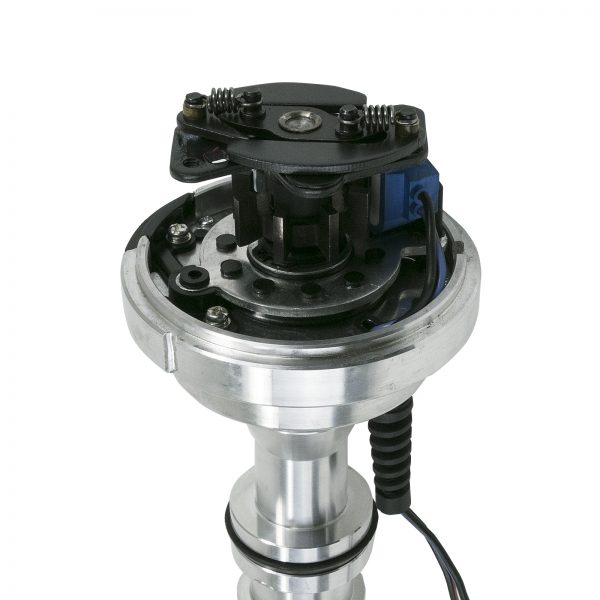

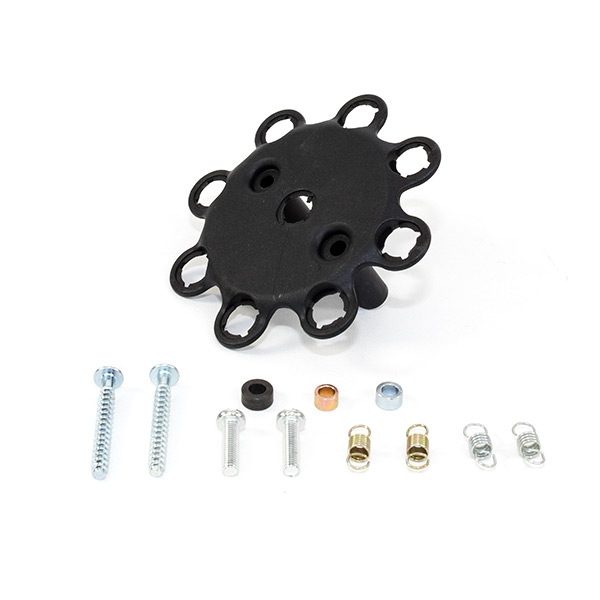

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

Specifications

FITMENT

FORD BIG BLOCK FE V8

• 5.4 L / 330 in³ commonly referred to as “FT”
• 5.8 L / 352 in³
• 5.9 L / 360 in³
• 6.4 L / 390 in³
• 6.7 L / 406 in³
• 6.7 L / 410 in³
• 7.0 L / 427 in³
• 7.0 L / 428 in³

FITMENT NOTES

• Will not fit heavy duty applications

ALERT

This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.

RESOURCES

Part Numbers
