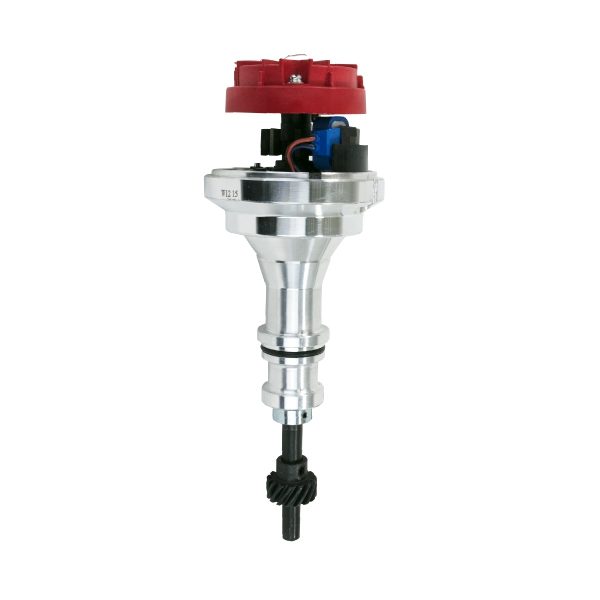

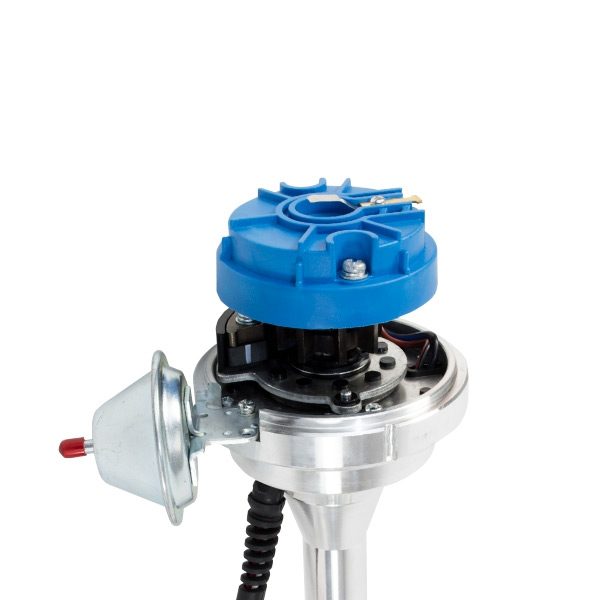

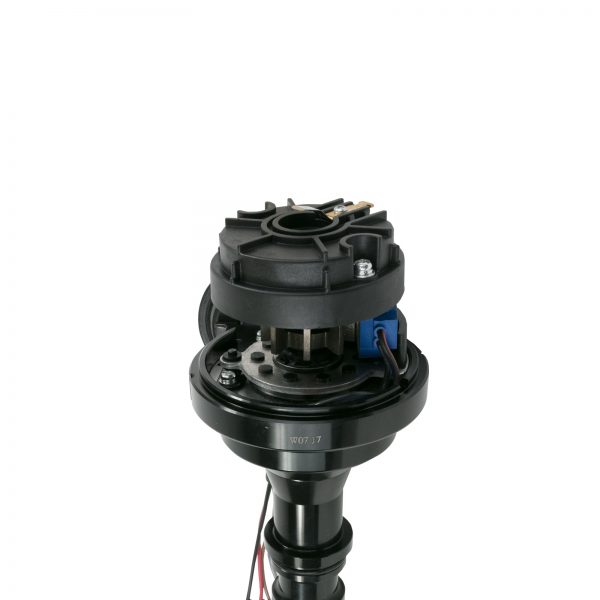

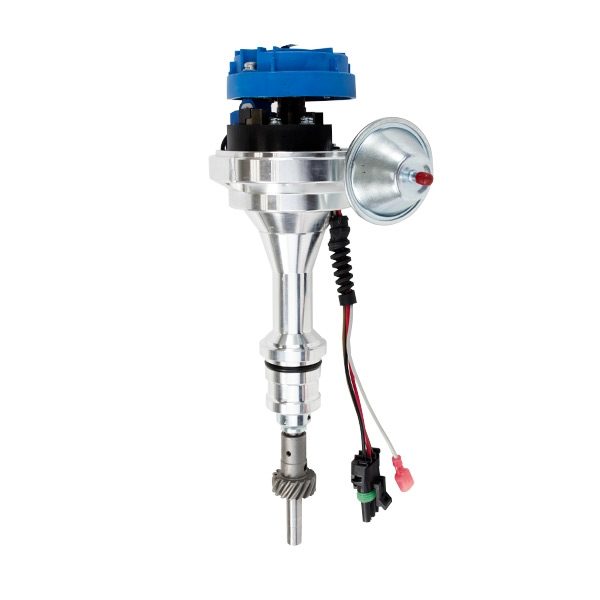

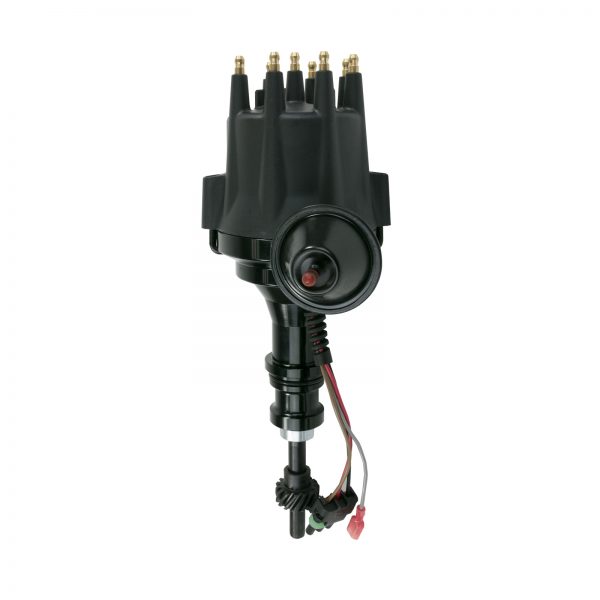

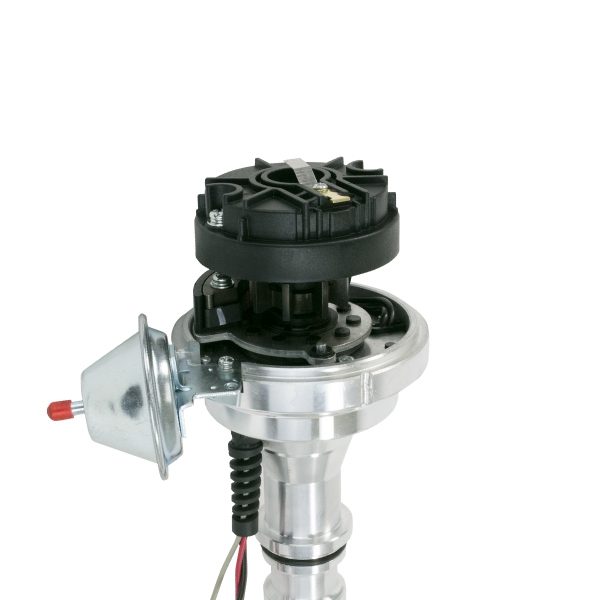

Ford SB 289/302 V8 Pro Series Ready to Run Distributor

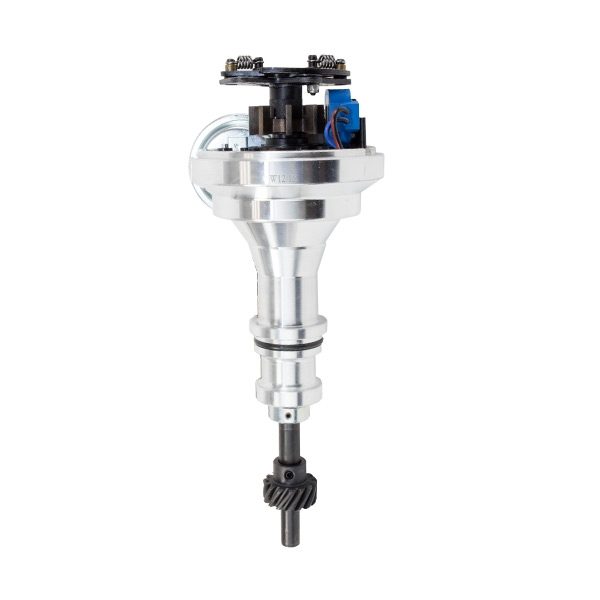

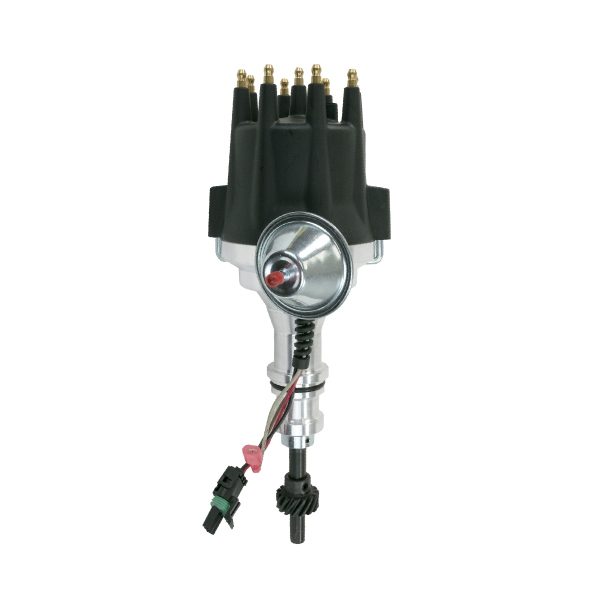

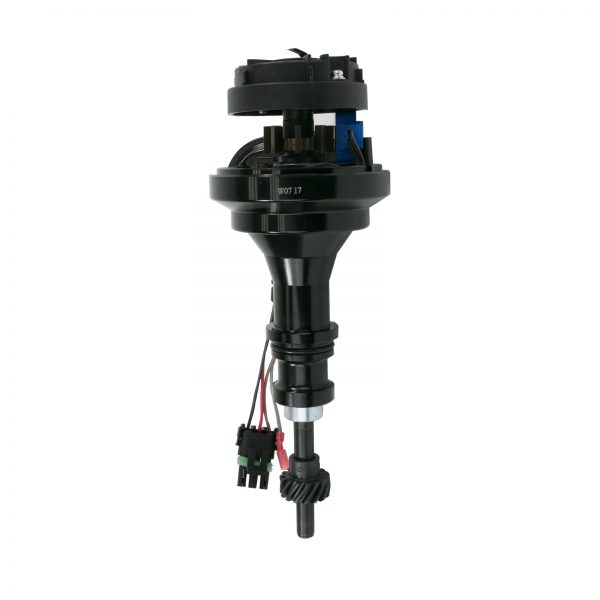

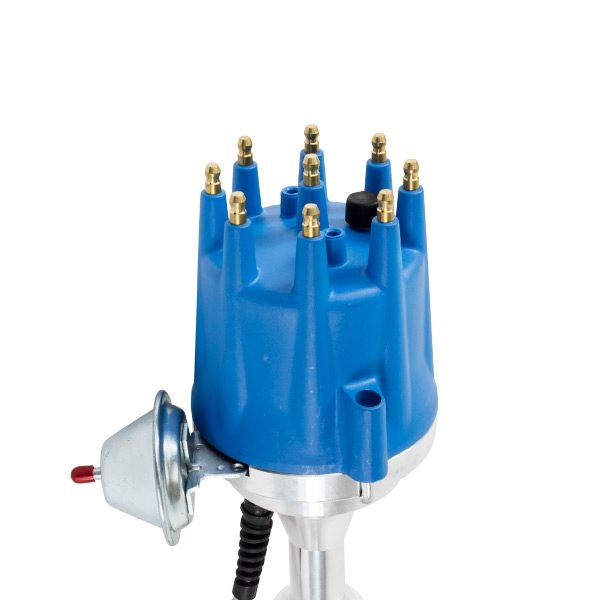

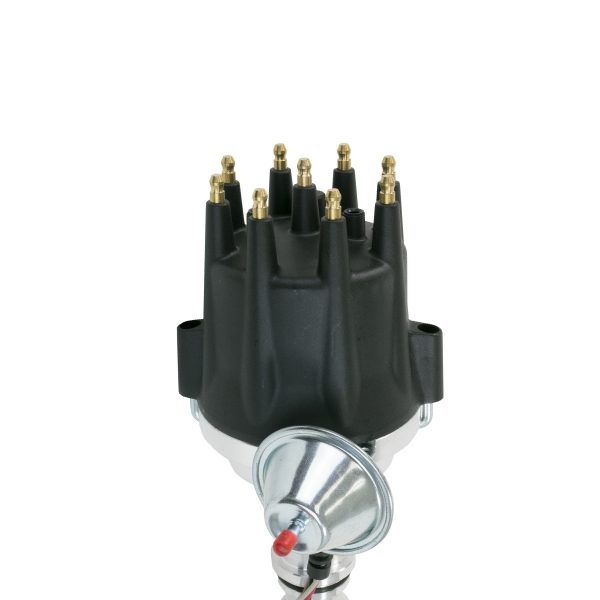

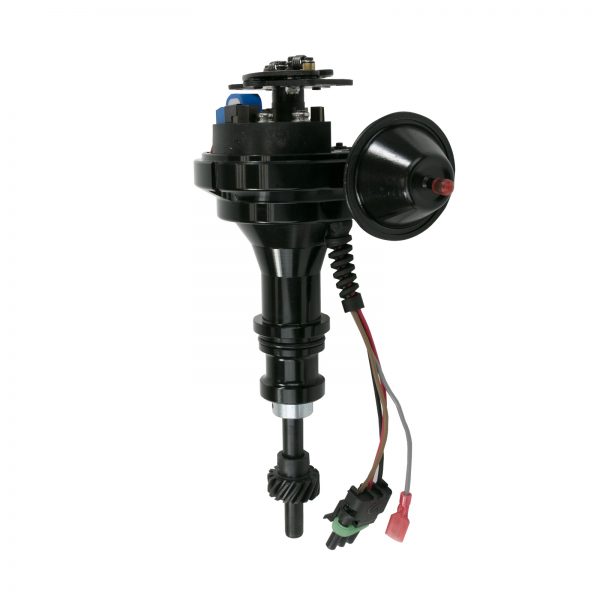

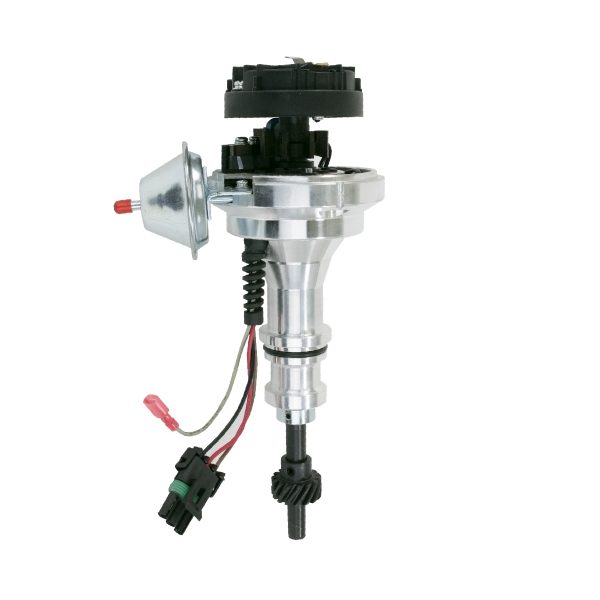

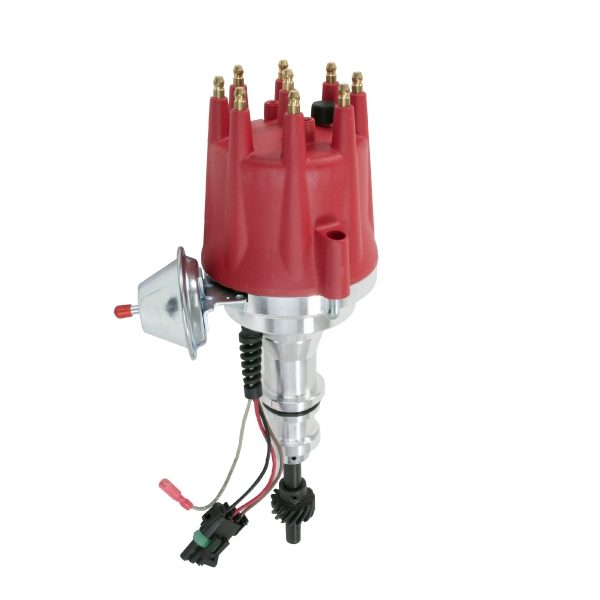

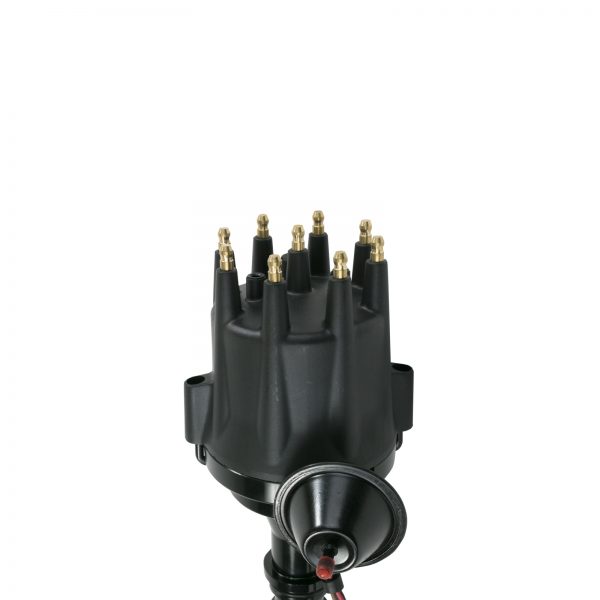

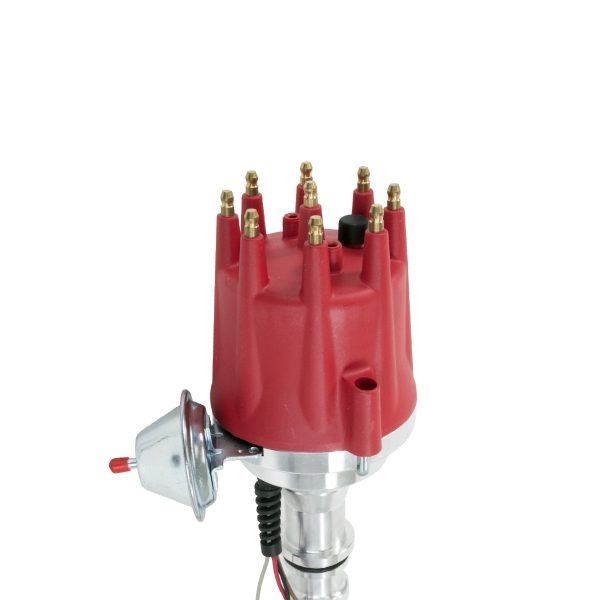

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

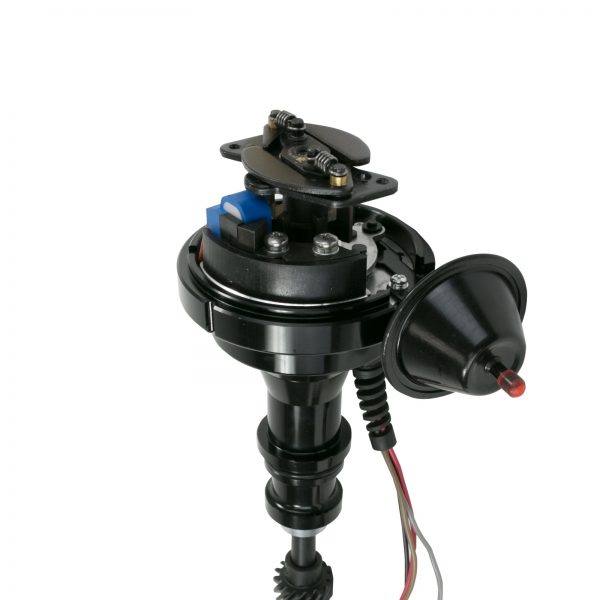

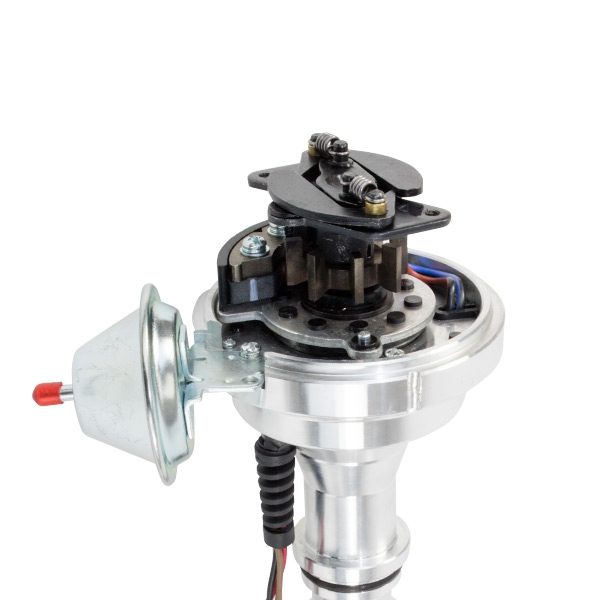

FULLY ADJUSTABLE MECHANICAL ADVANCE
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
High-Output Circuit Board Module

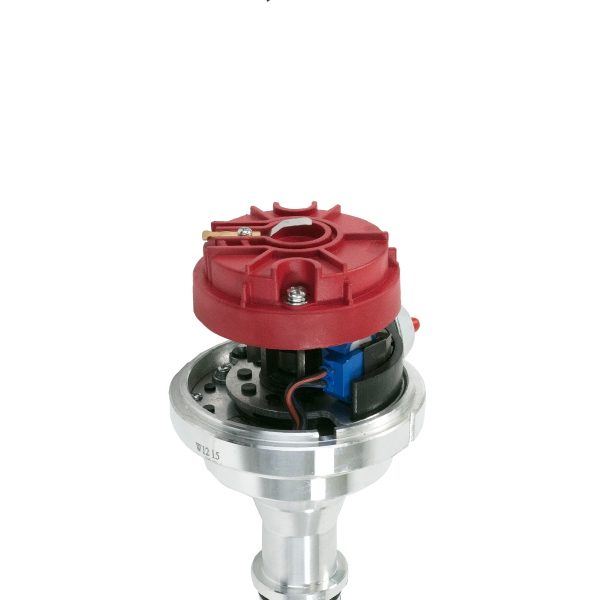

What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you’re good to go.
|TRIGGER STYLE||Circuit Board Module with Magnetic Pick-up|
|ADVANCE TYPE||Mechanical and Vacuum|
|MECHANICAL TACH DRIVE||No|
|RECOMMENDED COIL OUTPUT||35,000+ Volts|
|HOUSING MATERIAL||Machined Aluminum|
|IGNITION BOX REQUIRED||No|

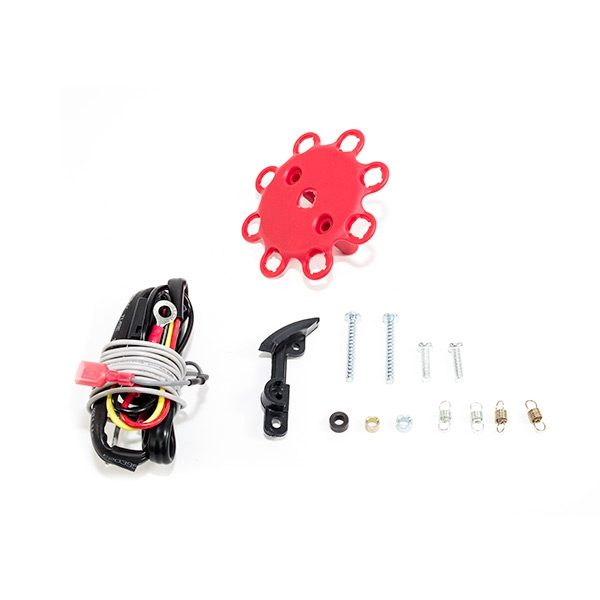

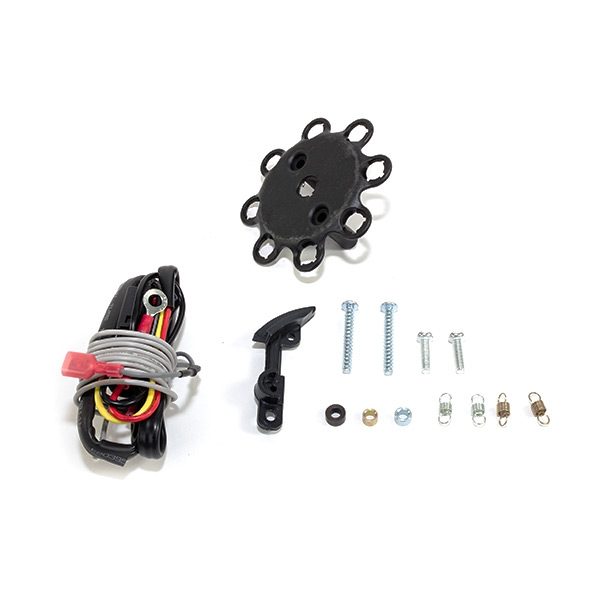

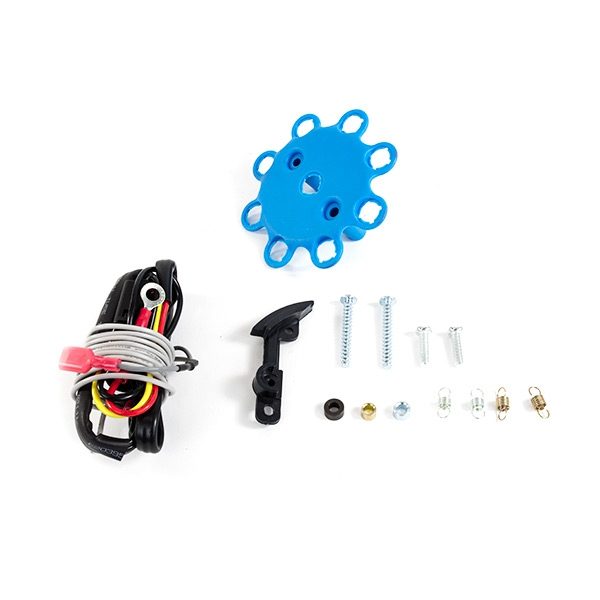

|INCLUDED||3 Bushings and 4 Springs for Mechanical Advance
Color-Matched Spark Plug Wire Retainer with Screws
Vacuum Advance Block-off Plate (Black)
Power Extension Cable
Tachometer Output Extension Cable
FORD SMALL BLOCK WINDSOR V8
- 3.6 L / 221 in3
- 4.3 L / 260 in3
- 4.7 L / 289 in3
- 4.9 L / 302 in3 generally referred to as 5.0 L
- Will not fit 351W
- Due to its shorter gear, this distributor will not fit engines that came fuel injected from the factory
- Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material
This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.
